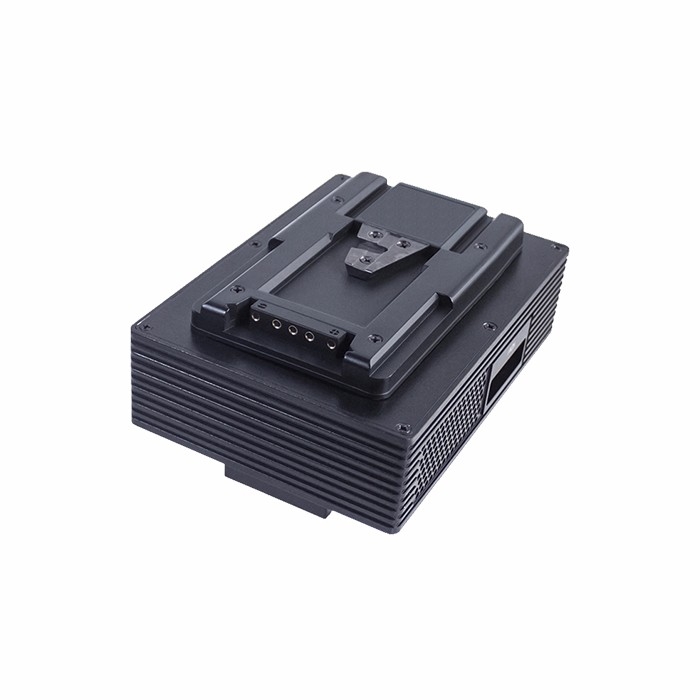

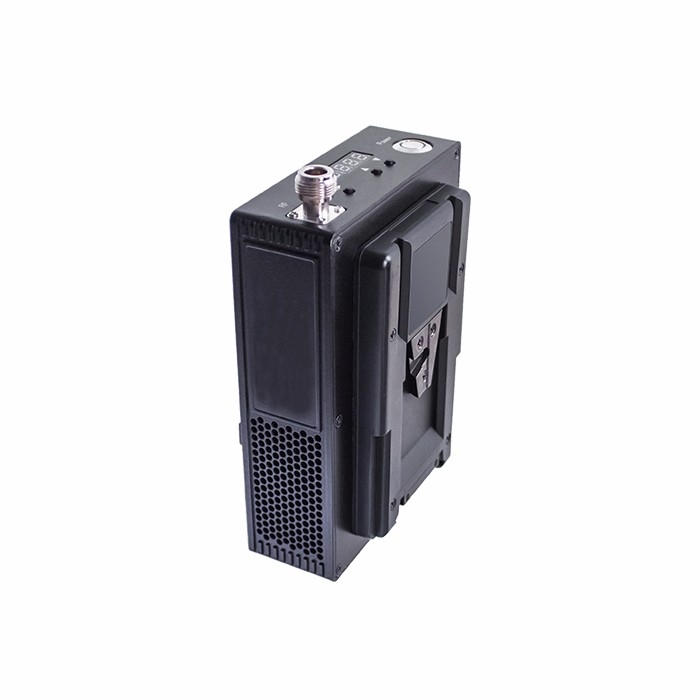

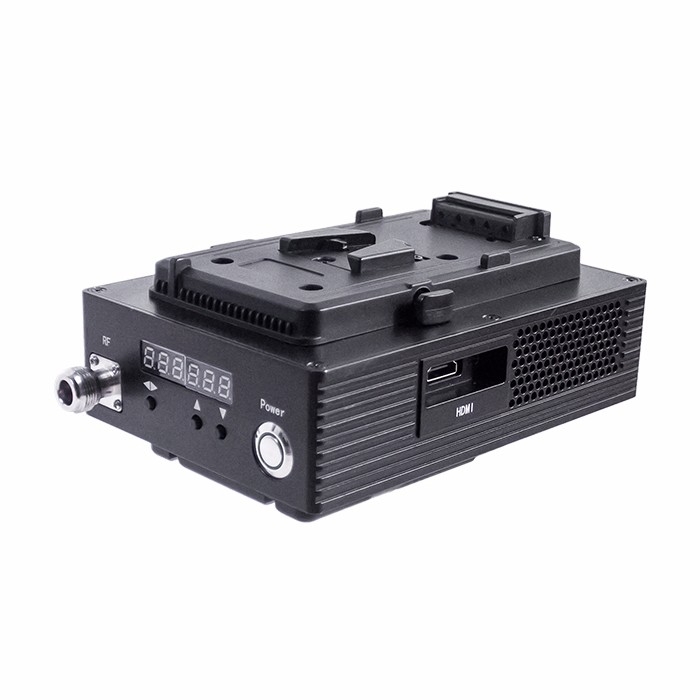

The LKRF-C323H is a buckle type COFDM wireless video transmitter featuring high quality and low latency,
ideally suits live video cameras. With COFDM and H.264 technologies at its core, it can support FHD video
transmission up to 1-2km NLOS.
Specifications
Transmission Characteristics
Modulation : COFDM 2K
Modulation Type : QPSK (4QAM), 16QAM, 64QAM (Default QPSK)
Frequency : 300MHz-860MHz (Default 700MHz) / 860MHz-2.7GHz for customization
Transmit Power : 33dBm (2W)
RF Bandwidth : 2-8MHz adjustable
FEC : 1/2, 2/3, 3/4, 7/8
Guard Interval : 1/4, 1/8, 1/16, 1/32
Data Characteristics
Video Input : SDI or HDMI: 1080p/1080i/720p/720i / CVBS: 720x480/60i (NTSC), 720x576/50i (PAL)
Video Compression: H.264
RF Interface : N F head
Parameter Settings : LED control panel
Encryption : AES128 (user-defined password)
Link Latency : ≤80ms
Movement Speed : Supports ≥120km/h
Electrical Characteristics
Working Voltage : DC 12V
Working Current : ≤1.5A
Battery : 12V/7800mAh
Power Consumption : ≤18W
Physical Characteristics
Weight : ≤1.5kg (w/o antenna)
Dimensions : 170*120*80.5(mm) (L×W×H)
Working Temp : -10℃~70℃
