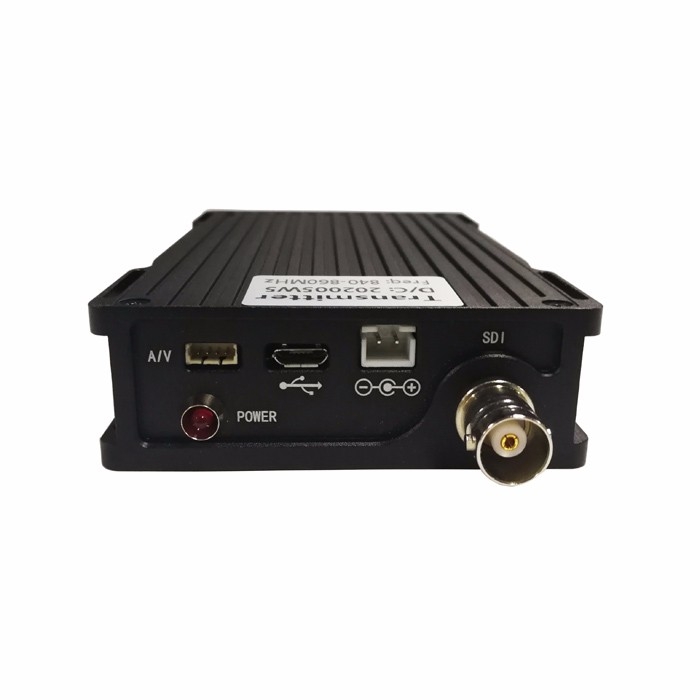

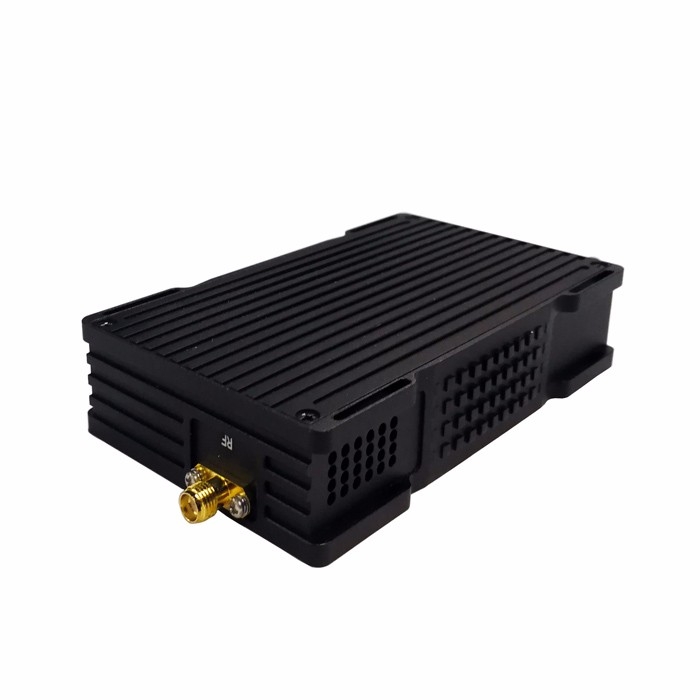

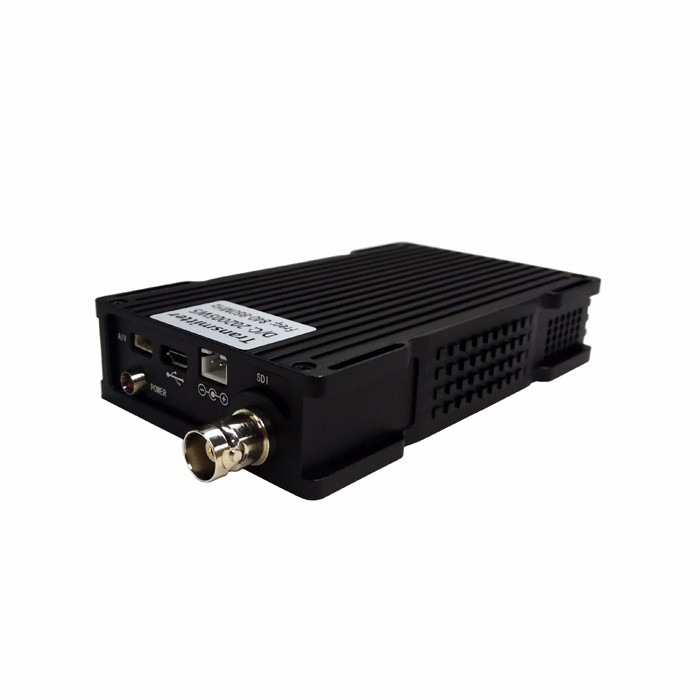

The LKRF-1648A is a COFDM wireless SDI & AV video transmitter designed to capture real-time,
high-quality video from UAV/UGV/Body Cams for display on fixed or mobile receive applications.
It features HD/SD-SDI & AV inputs with COFDM transmission in a small, lightweight chassis.
Providing long range, reliable HD video transmission.
>>>>>> Specifications <<<<<<
Transmission Characteristics
Modulation : COFDM
Modulation Type : QPSK(4QAM), 16QAM, 64QAM
Frequency : 300MHz-2.7GHz (Default 700MHz)
Output Power : 30dBm (33dBm Optional)
RF Bandwidth : 2/4/6/8MHz
FEC : 1/2, 2/3, 3/4, 7/8
Guard Interval : 1/4, 1/8, 1/16, 1/32
Data Characteristics
Video Input : SD/HD-SDI: 1080p/1080i/720p/720i…(self-adaption) / AV: 720x480/60i (NTSC), 720x576/50i (PAL) (self-adaption)
Video Compression : H.264
RF Interface : SMA F head
Control Method : Using the LED Control Box
Encryption : AES256 (User defined password)
Electrical Characteristics
Working Voltage : DC12V
Working Current : ≤1.2A (@12V)
Power Consumption : ≤14W
Physical Characteristics
Weight : 200g
Dimensions : 115x70x23.5mm
Working Temp. : -20℃~70℃
