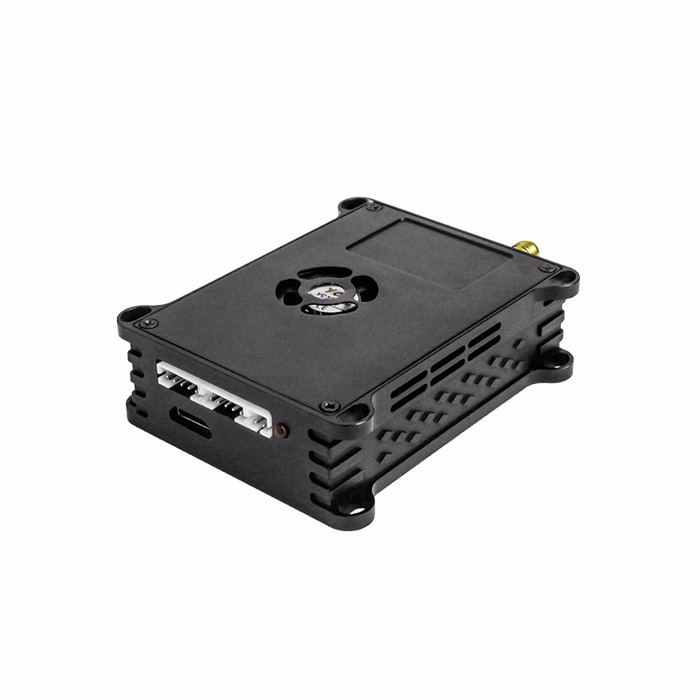

The LKRF-1614 is a mini COFDM video transmitter specifically designed for UAV/ Drones video transmission applications,
with proven rfproductscn COFDM technology and H.264 encoding technology at its core.
It can transmit HD video air to ground up to 20km, is ideal for establishing rugged wireless video links in all environments
including high-speed mobile and urban environments. The small size and ultra-low power consumption make
it ideally for UAV/Drone installations, enabling true long range HD video transmission.
>>>>>> Specifications <<<<<<
Transmission Characteristics
Modulation : COFDM
Modulation Type : QPSK (4QAM), 16QAM, 64QAM
Working Frequency : 300MHz-2.7GHz (default 700MHz)
Transmit Power : 30dBm (adjustable)
RF Bandwidth : 2-8MHz, 0.1MHz per step
FEC (forward error correction) : 1/2, 2/3, 3/4, 7/8
Guard Interval : 1/4, 1/8, 1/16, 1/32
Rate : 3MBps~32MBps
Antenna Gain : 3.5dbi (Omni Antenna) (optional)
Transmission Range : Ground-to-air 20km
Data Characteristics

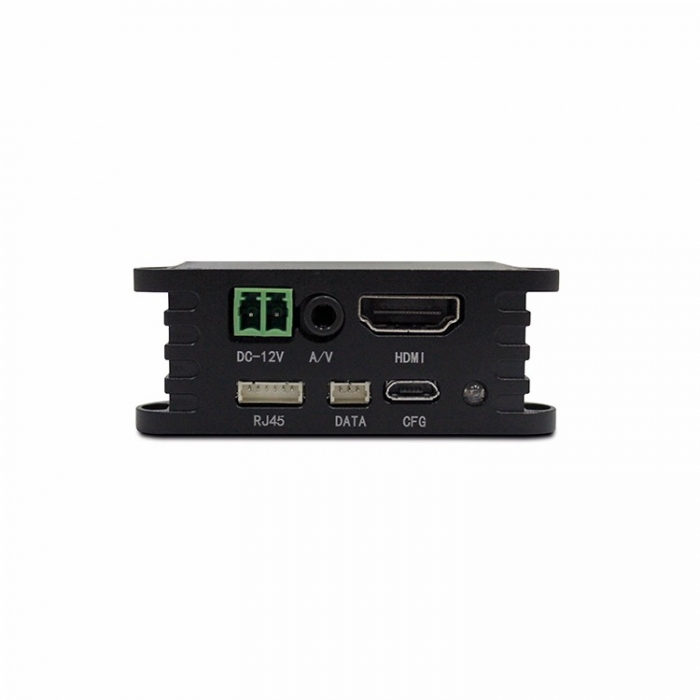

Video Input : HDMI (support 1080P/ 1080i/ 720P/ 720i…) / AV(NTSC/PAL…)
Video Compression : H.264

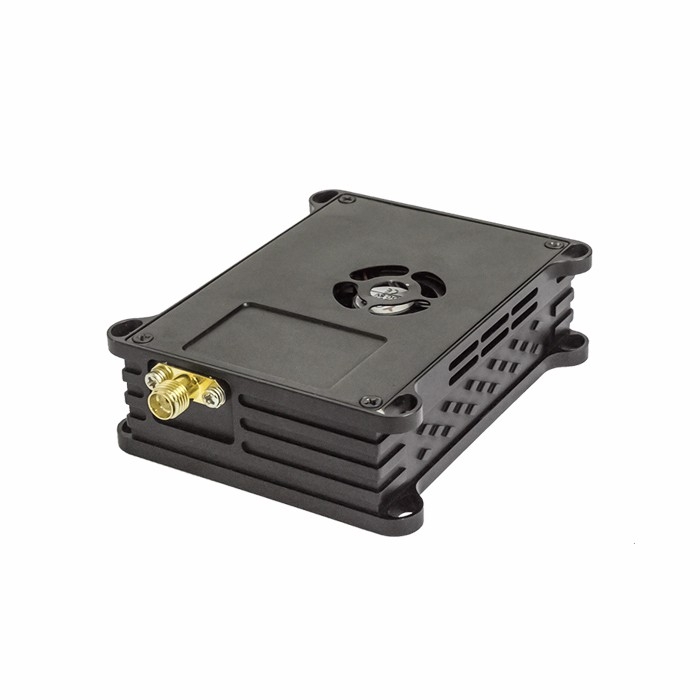

RF Interface : SMA F head
Parameter Control Method : Digital LED control panel
Encryption : 256-bit AES (can set user’s password)
Electrical Characteristics
Working Voltage : DC 12V
Working Current : ≤1.2A (@12V)
Power Consumption : ≤ 14.5W
Battery Endurance : 5 hours (12V/7800mAh)
Physical Characteristics
Working Temperature : -20℃ ~ 70℃
Dimensions : 77 × 54 ×23.5 mm
Weight : 105g
