The RFKNET3618 is a MESH radio specifically designed for UAV video data transmission,
it can transmit FHD video and data simultaneously. Its multi-hop relay can increase the transmission distance,
and its self-organizing network automatically selects the path. It has strong anti-blocking and anti-interference performance,
is very suitable for mobile communication under complex environment.
>>>>>> Specifications <<<<<<
Transmission Characteristics
Frequency : 1400MHz-1480MHz (350MHz-4GHz customizable)
RF Bandwidth : 2M/5M/10M/20MHz/40MHz
Output Power : 36dBm (4W MIMO 2x2)
RF Channel : 2T2R
Modulation Type : DSSS/CCK BPSK/QPSK OFDM / BPSK/QPSK/16-QAM/64-QAM
Digital Sensitivity : 96dBm@5MHz BPSK
Transmission Rate : Up to 82Mbps
Network Capability : 9 hops and no less than 64 nodes
Data Characteristics
RF Interface : SMA F*2
LAN/TTL Interface : J30J-15TJ Aviation Connector
Power Input Interface : XT60 Connector
HDMI Interface : Micro HDMI x1
Encryption : AES (user-defined password)
Electrical Characteristics
Working Voltage : DC 12-24V
Power Consumption : ≤12W
Physical Characteristics
Weight : 450g
Dimensions : 113*84*38mm
Protection Level : IP54
Storage Temp. : -45℃-65℃
Working Humidity : 5%-95% (Non-Condensing)

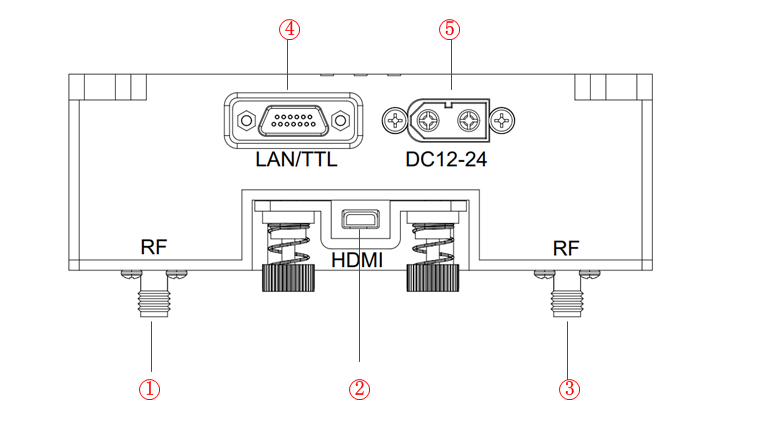

Panel Description
① MESH antenna interface, SMA F
② HDMI input interface
③ MESH antenna interface, SMA F
④ LAN/TTL interface
⑤ Power input interface
