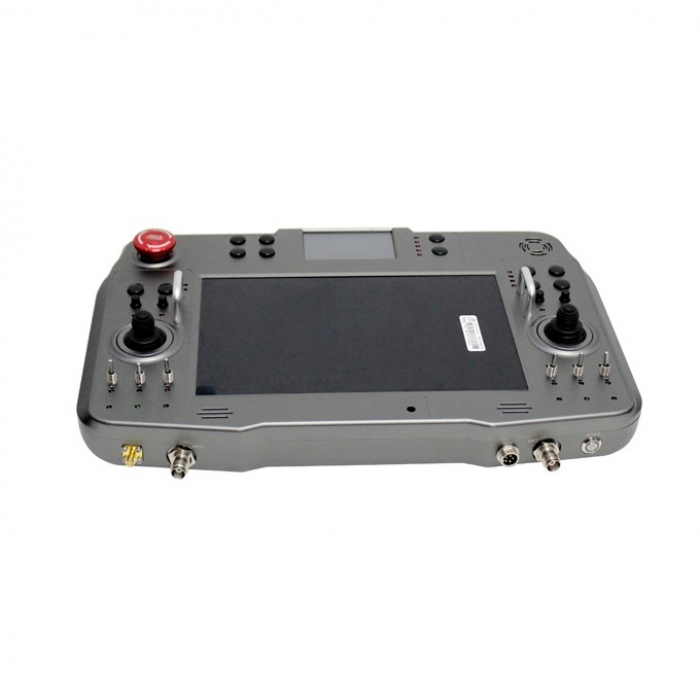

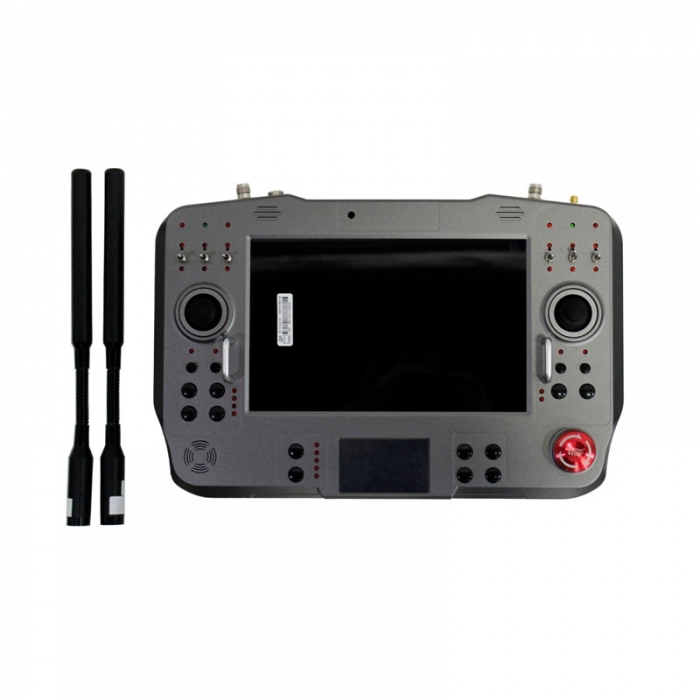

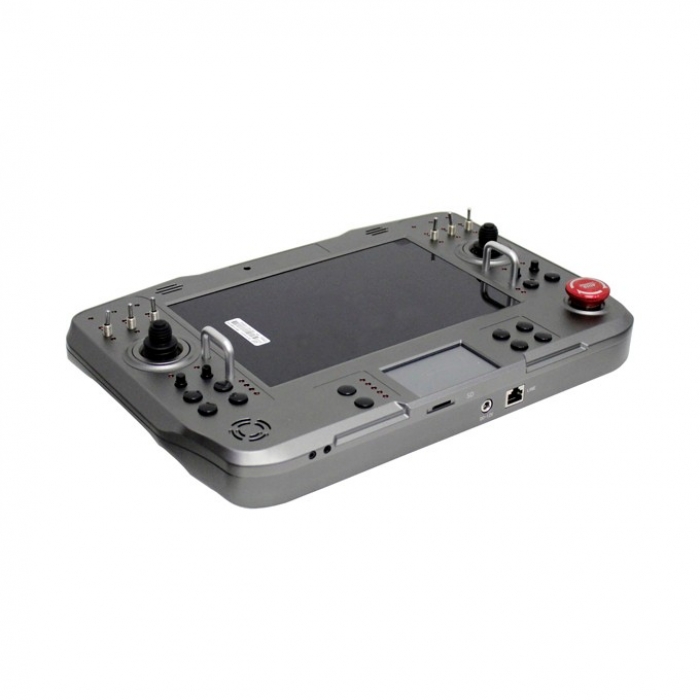

The RFKNET3108 is a MESH intelligent communication handheld remote control developed by rfproductscn
for robots that integrates video & data transmission, real-time display and command & control.
It adopts the current leading MESH network technology, encrypts video and data during transmission,
and can be used in conjunction with vehicle-mounted MESH equipment to form a robot intelligent communication system.
In application, the live video and information (such as fire point and oxygen concentration)
are displayed in real time through the remote control display. Multiple videos can be displayed at the same time or only
display one of the videos, and control commands are sent according to the front-end feedback on the scene,
such as robot motion control, PTZ camera control, water cannon control, car light control, alarm trigger,
vehicle speed control, emergency stop button, screen selection, video recording, etc.
>>>>>> Specifications <<<<<<
Display Size : 10.1”
Display Resolution : 1280*800pixels
Display Brightness : 1000nits
Video Display : 4 Channels
Frequency : 1400-1480MHz (350MHz-4GHz customizable)
RF Bandwidth : 2M/5M/10M/20MHz/40MHz
Output Power : 36dBm (4W MIMO 2x2)
RF Channels : 2T2R
Modulation Type : DSSS/CCK BPSK/QPSK OFDM / BPSK/QPSK/16-QAM/64-QAM
Digital Sensitivity : 96dBm@5MHz BPSK
Transmission Rate : Up to 80Mbps
RF Interface : TNC*2, SMA*1
LAN Interface : RJ45
Intercom Interface : 2-pin K-head microphone
Power Input Interface : DC Jack
Transmission Range : Up to 1.5km
Data Rate : Up to 82Mbps
Encryption : AES256
Dimensions : 370*239*38mm
Weight : 2.9kg (w/ Battery)
Working Temp : -20℃~+60℃
Working Voltage : DC 12V
Battery Capacity : 124Wh
Power Consumption : ≤30W
