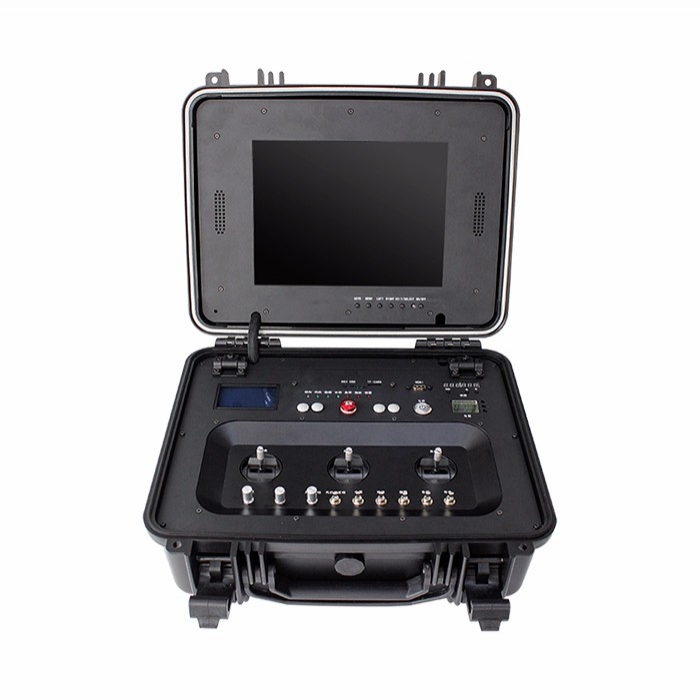

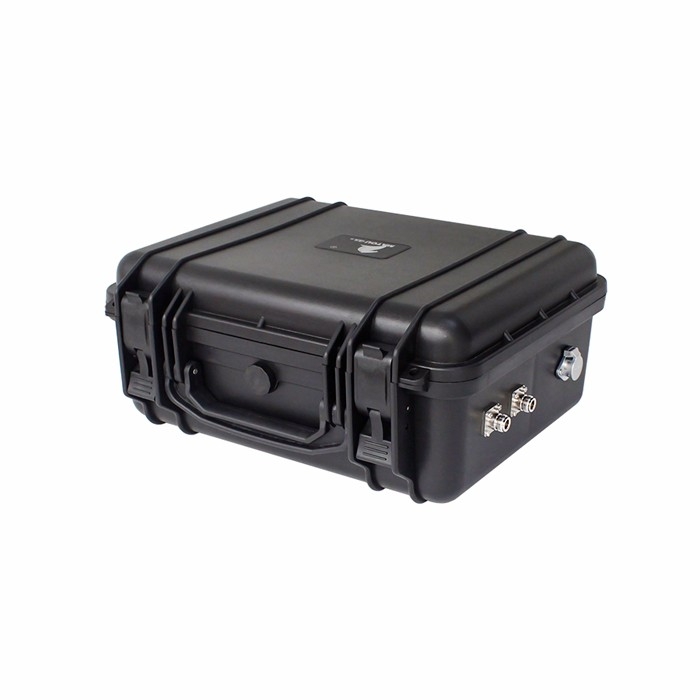

The LKRF-1422 is a COFDM based wireless control station specially designed for UGV/Robotics applications.
It integrates video stream receiving and data stream sending/receiving functions, is able to receive and display
video/data of the on-board devices, send control commands to the end devices, such as vehicle motion control,
PTZ camera control, water cannon control, headlight control, alarm trigger, speed control, emergency stop button,
screen selection, etc.
>>>>>> Specifications <<<<<<
Video Frequency : 200-800MHz customizable
Video Bandwidth : 2-8MHz adjustable
FEC : 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval : 1/4, 1/8, 1/16, 1/32
Cover Range : 1-3km LOS
Data Frequency : 410-500MHz customizable
Data Bandwidth : 9600bps
Data Output Power : 37dBm
Video Output : HDMI (1080p) x1
Video Compression : H.264
RF Connector : N Female x3
Control Method : LED Digital Control Panel
Encryption : AES256
Power Input : Battery / DC 12V External Power Supply
Working Voltage : DC 12V
Working Current : ≤2.5(@12V)
Power Consumption : ≤30W
Dimensions : 425*360*189mm (w/o antenna)
Working Temp : -20℃~+60℃
Weight : 3.8kg (w/o antenna)
